BOURDON PRESSURE GAUGE

Commercial Gauge (HCG)

    Dial Size (mm): 50, 63, 100 & 150
    Scale Range: Vacuum, 0 - 420 kg & above on request
    Connection: 1/8", 1/4", 3/8" BSP & NPT
    Accuracy: 1.6%
    Mounting: Bottom, Direct Mounting, Surface Mounting, Back with 3 Hole Panel
    Case & Bazel: MS Black Powder Coated (Press Fit)
    Usage: Dry

SS Body Brass Internal / Economical Grade (HEG 1)

    Dial Size (mm): 50, 63 & 100
    Scale Range: Vacuum, 0 - 420 kg & above on request
    Connection: 1/8", 1/4", 3/8", 1/2" BSP & NPT
    Accuracy: 1.6%
    Mounting: Bottom, Direct Mounting, Surface Mounting, Back with 3 Hole Panel
    Case & Bazel: Full SS 304 (Press Fit, Bayonet Type)
    Usage: Pumps, Refrigerating Plants

Full SS / Economical Grade (HEG 2)

    Dial Size (mm): 50, 63 & 100
    Scale Range: Vacuum, 0 - 420 kg & above on request
    Connection: 1/8", 1/4", 3/8", 1/2" BSP & NPT
    Accuracy: 1.6%
    Mounting: Bottom, Direct Mounting, Surface Mounting, Back with 3 Hole Panel
    Case & Bazel: Full SS 304 (Press Fit, Bayonet Type)
    Usage: Chemical & Petrochemical, Plastic & Paper Pneumatic Control System

Full SS Industrial Gauge (HIG)

    Dial Size (mm): 100 upto 300
    Scale Range: Vacuum, 0 - 1000 kg & above on request
    Connection: 1/8", 1/4", 3/8", 1/2", M10, M20, BSP & NPT above on request
    Accuracy: 1%
    Mounting: Bottom, Direct Mounting, Surface Mounting, Back with 3 Hole Panel
    Case & Bazel: Full SS 304, Internal SS 316
    Usage: Chemical & Petrochemical industries, Cryogenics, Gas

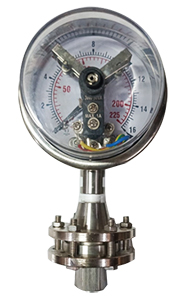

Electrical Contact Gauges (HEL)

    Dial Size (mm): 100 & 150
    Scale Range: Vacuum, 0 - 700 kg & above on request
    Connection: 1/8", 1/4", 3/8", 1/2", BSP & NPT above on request
    Accuracy: 1%
    Mounting: Bottom, Direct Mounting, Surface Mounting, Back with 3 Hole Panel
    Case & Bazel: Full SS 304 (Bayonet Type)
    Usage: Pneumatic control system, Chemical & Petrochemical, Water treatment
    Electric Contact: 1NO, 1NC,1NO+1NC, 1NC+1NO (230 V AC/110 V DC Max, Current 1 Amp)
